Chapter 6 — Evaluating a voice agent: turn evidence, observability, and reliability¶

Watch video, summary and related content

Estimated reading15 min

A dashboard can show 420 ms average latency, 99.9% successful HTTP requests, and no exceptions while the agent still fails the real task.

The opposite can happen too. A provider can fail, the runtime can recover through fallback, and the user can complete the conversation without noticing. Calling that entire turn a failure collapses an internal recovered fault into user-visible failure.

The useful question is: what evidence do you need for each turn to decide whether the system did the right thing, which boundary failed, whether it recovered, and what the user actually experienced?

This chapter builds that evidence model and connects it to offline evaluation, production observability, replay, and regression gates.

A transcript is not the system's ground truth¶

A transcript is valuable evidence, but it only describes part of the path. Consider this turn:

Text Only

User:  “Book the appointment for Tuesday at 3 PM.”
Agent: “Done. Your appointment is booked.”

A text judge may rate the response as correct. The tool, however, might have timed out after the external service accepted the mutation, or it might have failed before creating anything. The first case may leave the real state UNKNOWN; the second is FAILED. The same assistant sentence hides two different business outcomes.

Evaluation needs to connect at least four layers:

Outcome. Was the user's intent satisfied and is the external state correct?
Conversational control. Did the turn end at the right point, and were interruption, overlap, and barge-in handled correctly?
Media and perception. What audio entered, what audio was generated, and what reached the playout boundary?
Runtime and dependencies. Which provider, tool, process, or transport failed, retried, fell back, or reconnected?

Turn-level evidence

The first visible harm does not have to be the root cause

This turn completes the right task, but it was not clean: an internal timeout triggers fallback and the user receives the response late.

1 · Root cause · Runtimeprovider_timeout happens first.

2 · Recoveryfallback restores the ability to respond but adds time cost.

3 · First harmful observable · Mediafirst_playout → late_response. The user notices the delay after the cause has already occurred.

4 · Business outcomebusiness_state → SUCCESS. Recovering the outcome does not erase perceived degradation.

root_cause: provider_timeout
recovery: fallback
symptom: late_response
user_impact: delay
outcome: SUCCESS

One causal chain, four evidence sources Time runs left to right. Lanes separate domains; arrows show which event explains which.

First harmful observable ≠ root cause ≠ outcome. Keep recovery as a separate dimension too. A recovered internal error may not damage the outcome, and a textually correct answer can coexist with a degraded experience.

None of those layers replaces the others. A conversation that looks correct in text does not validate media. A clean LLM trace does not prove the user heard the audio. An HTTP 200 from a tool does not prove the agent understood the user's intent.

The useful unit of analysis is the logical turn¶

A full session is too coarse for many decisions. A provider request is too narrow. A useful unit is usually a logical turn: from evidence that the user is trying to communicate something until the system completes the relevant response or deliberately decides not to respond.

Frameworks do not all define that boundary in exactly the same way. Keep application-level identifiers alongside framework and provider IDs:

Text Only

session_id
turn_id
speech_id / provider_response_id / tool_call_id
agent_version
prompt_version
model + provider + region
transport/path
started_at / speech_stop / turn_commit / first_playout / turn_end
outcome
first_harmful_observable
root_cause
recovery
user_impact

Provider IDs are excellent debugging keys, but they should not become your canonical identity. A fallback can create two provider requests for one turn. A tool retry can create multiple attempts for one logical operation.

Observed, inferred, and judged are different kinds of evidence¶

Record where a signal came from:

observed: an event, timestamp, database state, packet counter, or tool result that was actually recorded
inferred: a conclusion derived from multiple signals, such as “likely media degradation after a TURN/TCP route change”
judged: a human or model classification, such as “the answer satisfied the user's intent”

Do not silently promote a probabilistic judge to ground truth. Preserve the judge input, model/version, criterion, output, and, when it matters, calibration against human labels.

Keep symptom, cause, and recovery separate¶

A single label such as LLM_ERROR throws away most of the information needed to improve the system.

Model failure along separate dimensions:

Text Only

stage       = turn | media | stt | llm | tts | tool | transport | runtime | business_state
symptom     = no_audio | wrong_answer | late_response | overlap | duplicate_effect | ...
cause       = endpointing | timeout | provider_5xx | auth | queue_saturation | crash | ...
recovery    = none | retry | fallback | reconnect | reconcile | compensate | user_retry
user_impact = none | delay | degraded_audio | repeated_speech | wrong_action | dropped_call

The distinction between the first harmful observable and the root cause is particularly useful. A user may experience a late response because a provider timeout triggered fallback. The harmful observable is latency. The root cause may be the provider timeout. Recovery was fallback. The final task outcome can still be correct.

That structure lets you answer different questions from the same evidence:

What is hurting users most often?
Which dependency creates the most internal failures?
Which recovery mechanisms prevent those failures from becoming user-visible?
Which production failures are not represented in regression coverage?

Voice needs failure classes that chat does not¶

At minimum, cover these families.

Boundary	Example failure	Evidence you need
media ingress	no audio or only one direction arrives	transport events, RTP/WebRTC/carrier counters, track state
speech/turn detection	false end of turn or excessive endpoint delay	VAD/EOU events, transcript timing, `turn_id`
interruption	backchannel classified as barge-in	speech events, interruption decision, playback state
STT	transcript error changes user intent	input audio + transcript + confidence/evidence when available
LLM/realtime model	wrong answer, wrong tool, or timeout	request/response trace, tool plan, provider error
tool/business state	tool reports success but the effect does not exist	`operation_id`, system of record, reconciliation result
TTS	wrong, truncated, or late audio	synthesized chunks, TTS error/latency, expected text
playout	audio was generated but did not reach playback	output queue, carrier/player acknowledgement boundary
transport	reconnect, unexpected relay, jitter/loss	candidate/path, reconnect events, jitter/loss windows
runtime	crash, worker restart, handoff/state loss	process logs, session events, durable-state reconstruction

Do not use model_error as a catch-all for a failed tool, growing jitter buffer, or premature turn close.

Start every reliability metric with its denominator¶

A reliability metric is only interpretable when the counted population is explicit.

For example:

Text Only

turn_failure_rate
  = turns_with_user_visible_failure / eligible_logical_turns

internal_failure_rate
  = turns_with_any_internal_failure / eligible_logical_turns

recovery_success_rate
  = internally_failed_turns_recovered_without_user_visible_failure
    / internally_failed_turns

unknown_effect_rate
  = mutating_actions_ending_UNKNOWN / admitted_mutating_actions

retry_amplification
  = provider_or_tool_attempts / logical_operations

Do not compare a turn failure rate whose denominator is turns with a provider error rate whose denominator is requests as if they measured the same thing. Retries and fallback change request counts without necessarily changing turn counts.

Segment metrics by variables that change the mechanism: agent version, provider/model, language, transport, carrier, region, device class, ICE/TURN route, codec, tool, and relevant intent type. Heavy aggregation can hide a severe regression in a small cohort.

For latency, retain distributions per boundary rather than one average. Chapter 3 separated speech_stop → turn_commit → first_playout; here those boundaries need to travel with outcome and failure classification instead of living in a separate dashboard.

An internal failure does not automatically mean release failure¶

A reliable system is not a system with no internal faults. It is a system that maintains its user contract under an explicit failure model and makes failures visible when it cannot recover.

Example:

Text Only

attempt 1: TTS provider A -> timeout
fallback: provider B -> first playable audio
outcome: correct response
user impact: +620 ms delay

Observability should record the timeout and fallback. Outcome evaluation should not automatically label the turn unsuccessful. If the extra delay violates the interaction budget, the same turn may fail an experience SLO while still completing the task correctly.

Keep at least these dimensions distinct:

correctness: did the system do the right thing?
interaction quality: were turns, interruptions, audio, and timing acceptable?
reliability: did the system preserve its contract under expected faults?
recovery cost: how many retries, fallbacks, or extra seconds were required?

Use deterministic assertions where a judge is unnecessary¶

Some properties should be machine-checkable:

the same operation_id must not create two business effects
cancelled speech must not keep entering the playout queue beyond the agreed cancellation boundary
one logical operation must not silently acquire a new turn_id mid-flight
an UNKNOWN side effect must not become SUCCESS without reconciliation or system-of-record evidence
a destructive tool must not execute without the required state and authorization
a recovered session must not treat in-memory state as durable state

Use judges for semantic or perceptual properties that cannot be reduced to a deterministic invariant.

Build evaluation in layers, from cheap to realistic¶

There is no single eval score that replaces an evaluation strategy. Use a ladder.

1. Component tests and invariants¶

Test parsers, state machines, idempotency, cancellation, audio transforms, and tool adapters with controlled inputs. The goal is reproducibility and fast diagnosis.

2. Agent behavior tests¶

Verify concrete turns, tool arguments, handoffs, policies, and expected responses. Framework helpers can reduce setup, but document which layers they do not exercise.

LiveKit Agents provides a test framework integrated with pytest/Vitest for asserting messages, tool calls, arguments, and handoffs. The current documentation describes these tests as text-based, runnable locally or in CI. They use the real LLM provider but do not create a LiveKit room connection.¹

That is useful evidence about agent logic. It does not certify WebRTC, SIP, a carrier, jitter, real audio VAD, or production playout.

Pipecat Evals runs scenarios against the real agent. Text mode bypasses STT/TTS, while audio mode exercises the STT/LLM/TTS pipeline. The important boundary is that its eval transport replaces Daily/WebRTC/telephony with a local RTVI/WebSocket server, so even audio-mode evals do not certify the production transport.⁷

3. Audio and multi-turn scenarios¶

Add fixed or generated audio, noise, interruptions, difficult pronunciations, goal changes, and adversarial tool outcomes. If the exact audio that failed matters, turn it into a reproducible fixture rather than relying only on newly synthesized audio each run.

4. Tests over the deployed transport¶

Run real or simulated calls over the paths users actually take: browser/WebRTC, SIP/PSTN, or carrier WebSocket. This is where NAT, codec negotiation, packet loss, reconnection, and buffering appear.

5. Production evidence and human review¶

Sample real sessions under explicit privacy and retention rules, identify failure clusters, review ambiguous cases, and turn reproducible failures into regression coverage. Production is not your only eval set. It is a source of cases and distributions that synthetic tests do not know in advance.

Correct replay means more than resending the transcript¶

Replay has multiple levels:

Transcript replay: resend text to test logic, context, and mocked tools.
Audio replay: reuse the same input audio for STT/turn-taking and, when appropriate, compare output.
Event replay: reproduce framework/transport events with controlled timing.
Dependency replay: replace providers/tools with recorded responses to isolate a state machine.
Full-path replay: traverse the deployed transport and real dependencies or staging equivalents.

Pick the level that can reproduce the mechanism. A prompt regression may reduce to text. A false barge-in requires audio and timing. A reconnect bug may require transport events. A duplicate charge needs the operation ledger and system of record.

Persist agent version, prompt/configuration, and relevant dependency versions so you can explain why a later replay does or does not reproduce an old case.

Observability should connect the logical turn, not just provider calls¶

A useful trace has a stable turn span or correlation boundary and links internal attempts to it. Conceptually:

Text Only

voice.session
└── voice.turn              turn_id=...
    ├── turn.detect
    ├── stt.finalize
    ├── model.response      attempt=1
    ├── tool.operation      operation_id=...
    ├── model.response      attempt=2 / fallback if needed
    ├── tts.synthesize
    └── media.playout

Do not put high-cardinality free text, full transcripts, or unique IDs into metric labels. OpenTelemetry recommends that error.type be predictable and low-cardinality. Successful operations should not carry error.type, which lets consumers derive error rates from one operation metric without creating a separate metric family per failure string.¹⁴

Keep high-cardinality detail in traces, logs, or suitable storage and correlate it with stable IDs.

LiveKit: separate SDK evidence from Cloud capabilities¶

LiveKit Agents exposes session data in the SDK: session.history, turn-progress events, component/turn/session metrics, and a final SessionReport. ctx.make_session_report() and to_dict() operate on data already collected in the agent process and also work in self-hosted deployments without calling LiveKit Cloud.²

The SDK also instruments sessions with OpenTelemetry and can export spans to an OTLP-compatible backend.³

Agent insights is a LiveKit Cloud capability. Its timeline combines transcripts, traces, logs, and audio. It works for Cloud-deployed agents and self-hosted agents connected to LiveKit Cloud media servers, but not for fully self-hosted media servers.⁴

That distinction matters when comparing stacks. “LiveKit has a timeline with audio” is not the same claim as “the open-source Agents runtime includes that managed backend.”

Session timeline logs also do not cover every server-level failure. The Insights documentation separates crashes, startup failures, and dispatch errors outside a session and points to log drains for that failure domain.⁴

Recoverable errors are not equivalent to successful turns¶

AgentSession emits ErrorEvent for STT, LLM, TTS, and realtime model failures. The recoverable property belongs to the contained error object, so the relevant boundary is ev.error.recoverable. A recoverable error can be retried automatically; an unrecoverable one closes the session unless the application intervenes.⁵

Record the internal error and the recovery path, then determine the turn outcome from additional evidence. recoverable=True describes runtime recovery semantics, not product success.

Pipecat: frame-level visibility is useful, but keep product boundaries¶

Pipecat can emit MetricsFrame objects for performance and usage. UserBotLatencyObserver measures from detected user-speech stop to bot-speech start and can attach service-level breakdowns when metrics are enabled.⁹¹⁰

TurnTrackingObserver exposes turn start/end and interruption state. Other built-in observers cover LLM activity, transcription, and startup timing.¹¹

For errors, a FrameProcessor fires on_error before an ErrorFrame is propagated upstream. The frame carries the error string, optional exception, category, and source processor; in the current API, processor.is_usable reflects whether that processor can still do its job. Pipecat therefore separates component usability from the decision to keep the pipeline running.¹²¹³

ErrorFrame.fatal, push_error(..., fatal=...), and FatalErrorFrame are deprecated and documented for removal in 2.0.0. fatal=True still cancels the pipeline for compatibility, but the current recommended model is to mark the processor unusable and let PipelineWorker apply ProcessorUnusablePolicy: CONTINUE (the default), END, or CANCEL. A ServiceSwitcher can use that state for failover.¹³

These primitives can support a detailed pipeline ledger. They should not become the entire product taxonomy. A processor remaining is_usable=True does not prove that the turn succeeded, and CONTINUE does not mean success either: those states only describe that the framework can keep executing. They do not tell you whether a booking was committed, whether another layer recovered, or whether the caller heard partial audio.

Pipecat's own Evals lifecycle documentation also draws the boundary around local regression coverage: deployed transport, sustained load/concurrency, hidden tool state, production drift, exact-audio replay, and persisted trend comparisons need additional layers.⁸

LiveKit Agents vs Pipecat vs vanilla/thin for evaluation and observability¶

There is no universal winner. The decision depends on how much evidence plumbing and quality infrastructure you want the runtime to own versus your application.

Dimension	LiveKit Agents	Pipecat	Vanilla/thin Python
runtime events	session events, metrics, reports, OTel	frames, processor events, metrics, observers	you define and emit them
tests close to code	text-based behavior/tools/handoff framework	Pipecat Evals text/audio over eval transport	your harness or independent libraries
managed observability	Agent insights is LiveKit Cloud, not self-hosted core	Pipecat Cloud extras are managed, not core	your backend/OTel/vendor choice
production transport	needs separate evidence from the test framework	eval transport does not certify WebRTC/SIP/telephony	you build/integrate the transport and its test path
business failure taxonomy	application-owned	application-owned	application-owned
exact replay	export and retain the evidence you need	export and retain the evidence you need	full ownership and full operational responsibility
velocity vs control	more built-in conventions and primitives	strong pipeline/frame visibility	maximum control with the largest design/ops surface

Choose LiveKit Agents when¶

You already use its session/media/agent abstractions and want events, metrics, reports, and test helpers aligned to that runtime. If LiveKit Cloud is also an acceptable media/observability plane, Agent insights can remove integration work. Keep business ground truth, sampling policy, regression cases, and any retention beyond the managed service's contract under application control.

Choose Pipecat when¶

An explicit pipeline and frame/processor-level instrumentation help you localize faults, and you want repository-local Evals. Keep separate tests for the real transport, load/concurrency, tool side effects, and exact audio whenever those boundaries are part of the risk.

Choose vanilla/thin Python when¶

You need your own evidence schema, exhaustive protocol/event access, or a harness that does not fit the framework abstractions. You now own IDs, traces, metrics, structured logs, error taxonomy, sampling, redaction, audio capture, replay, fixtures, judges, dashboards, alerts, retention, CI gates, and correlation with business state. A thinner runtime does not make that system disappear.

A hybrid is often the clean boundary¶

Use LiveKit or Pipecat for media/runtime while keeping an application-owned canonical turn ledger exported through OpenTelemetry plus your own evaluation store. That preserves quality history across framework changes and keeps business outcome grounded in the system of record.

Three concrete failures and the evidence they need¶

Case 1 — The agent is slow but eventually correct¶

Evidence:

Text Only

turn_commit = 10:00:00.000
provider timeout at attempt 1
fallback attempt 2 succeeds
first_playout = 10:00:01.420
business outcome = SUCCESS

Do not label this wrong_answer. Record provider failure, recovery, and latency impact. The release gate may still fail on interaction latency even though task correctness passes.

Case 2 — The agent says “booked” while the tool is UNKNOWN¶

The transcript looks good. The evaluation must resolve the operation_id against the system of record. Without commit evidence, the turn is not successful merely because the model claimed success.

Turn this into a regression fixture where the mutating request was sent but its response was lost, and require reconciliation before the agent confirms the action.

Case 3 — The user barges in but old audio keeps playing¶

You need audio/timestamps or playout events. Transcript replay cannot reproduce the failure. Preserve the sequence user_speech_start → interruption accepted → generation cancelled → output queue cleared → playback stopped and assert the boundary that actually controls the device or carrier.

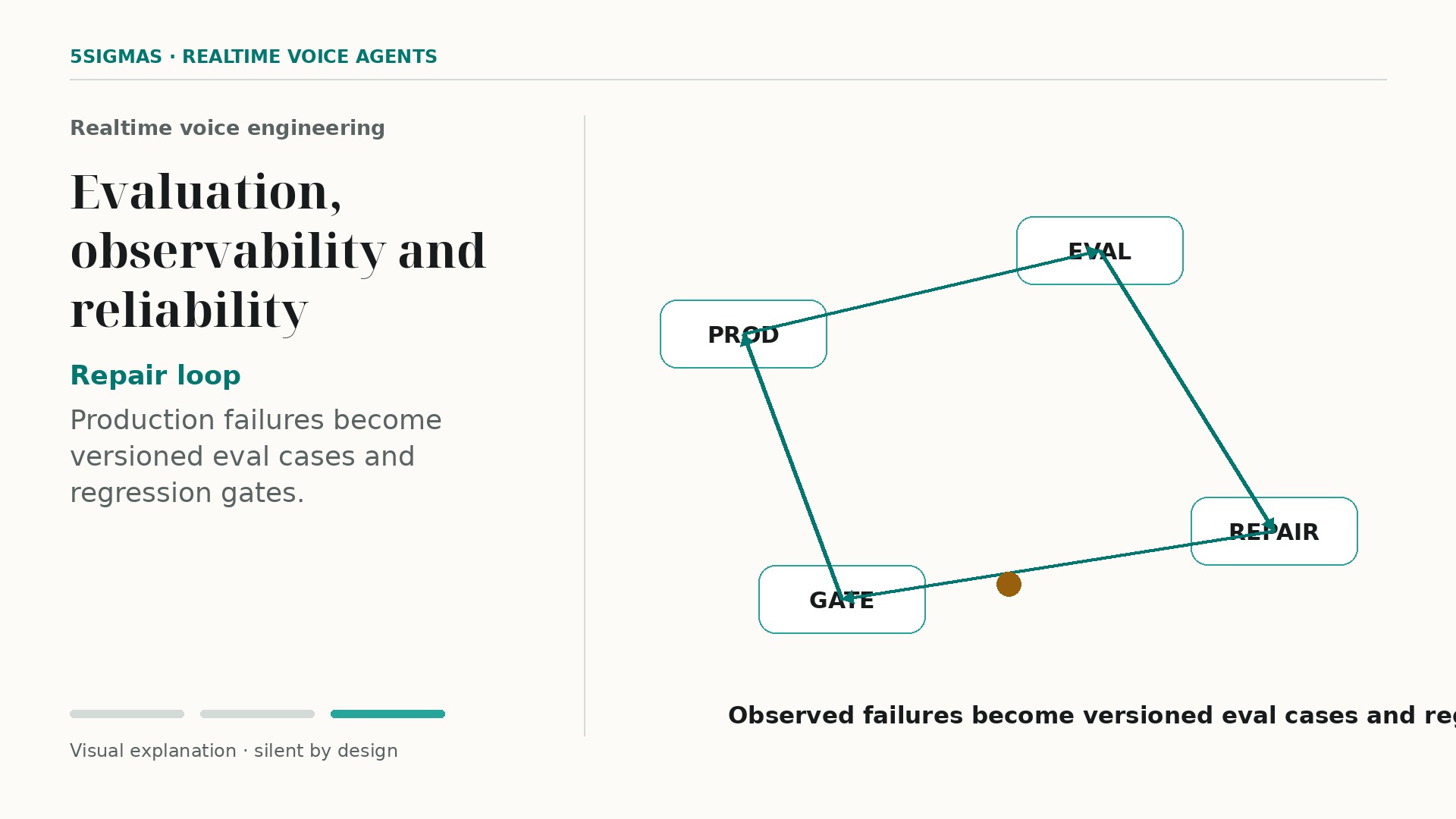

Turn production failures into the smallest useful regression¶

Do not copy every bad production session into a giant end-to-end suite. Minimize the case first.

Text Only

production failure
→ classify stage/symptom/cause/recovery/impact
→ isolate the smallest reproducible evidence
→ choose transcript/audio/event/dependency/full-path replay
→ add deterministic assertions where possible
→ add a judge only for irreducibly semantic/perceptual properties
→ gate the regression at the cheapest layer that reproduces it

If the failure only occurs on PSTN through one carrier, a text test is the wrong gate. If the failure is tool idempotency, a full phone call is unnecessary to block it.

The goal is for every incident to reduce the chance of repeating the same failure mechanism, not to accumulate a directory of expensive conversations nobody can diagnose.

Privacy and security are part of observability design¶

Audio, transcripts, tool arguments, and traces can contain sensitive data. Define explicitly:

which signals you collect and why
what is redacted before leaving the process
who can read audio, transcripts, and tool payloads
how long each data class is retained
what is sampled and what is retained in full
how data associated with a session or user is deleted when the product requires it

Do not assume a managed service's redaction protects data your application exported elsewhere first. LiveKit, for example, documents that its PII redaction applies to data stored in LiveKit Cloud. Data collected or exported independently by your agent is outside that redaction boundary.⁶

With vanilla, the entire contract is application-owned. With any framework, business state and tool credentials still need controls independent of telemetry.

A production release checklist for voice-agent quality¶

Before trusting a release:

Define the turn_id and timing boundaries shared across components.
Separate outcome, interaction quality, media, and runtime/dependency health.
Use a taxonomy with stage, symptom, cause, recovery, and user impact.
Define every denominator before publishing a rate.
Keep internal attempts separate from logical operations.
Preserve UNKNOWN as a real state for unreconciled side effects.
Use deterministic assertions for invariants and judges only where they add signal.
Run cheap behavioral tests on every meaningful change.
Add audio when the failure depends on STT/TTS/VAD/turn-taking.
Test the deployed transport when WebRTC/SIP/carrier/network behavior is part of the risk.
Correlate traces, logs, metrics, audio, and tool state under one session/turn/operation schema.
Segment quality by version, provider, transport, region, and relevant intent.
Preserve both failure and recovery, not only the final state.
Minimize production failures into reproducible regression cases.
Treat privacy, redaction, access, and retention as part of the observability contract.

An observability platform helps you see events. An evaluation strategy decides what those events mean for the product. Reliability emerges when both are connected by an explicit failure model and every reproducible production failure can become a gate that prevents the same mechanism from returning.

References¶

LiveKit, Testing and evaluation. ↩
LiveKit, Data hooks. ↩
LiveKit, Export traces. ↩
LiveKit, Agent insights in LiveKit Cloud. ↩↩
LiveKit, Events and error handling. ↩
LiveKit, PII redaction. ↩
Pipecat, Pipecat Evals. ↩
Pipecat, Evals Lifecycle. ↩
Pipecat, Metrics. ↩
Pipecat, User-Bot Latency Observer. ↩
Pipecat, Observer Pattern. ↩
Pipecat, FrameProcessor Events. ↩
Pipecat, Error Handling. ↩↩
OpenTelemetry, Recording errors. ↩

Keep learning

Series completedChoose the next pathAll series
