Chapter 4 — Tools and state: execute actions without breaking the conversation¶
A voice agent can stop speaking within milliseconds while an action it already started remains impossible to undo. That distinction is the core of this chapter.
When a user says “book the table,” “send the email,” or “cancel my order,” the system is no longer only managing dialogue. It is running a distributed workflow with state, external effects, retries, interruptions, and results that may arrive after the user has moved to another topic.
The question is specific: how do you execute tools and long-running actions without confusing conversational state with real business state, or treating a voice interruption as proof that an external action was cancelled?
A tool call is not the external effect¶
Separate at least four events:
1. tool_requested the model proposes a call
2. action_admitted the application validates and accepts the intent
3. effect_committed the external system confirms the effect
4. result_observed the agent receives a usable result
They are not equivalent.
A barge-in cuts one track; it does not rewind the operation
The three lanes share time, but not authority. The conversation can move on while op_42 remains a pending system obligation.
"Book it for 21:00" → operation_id=op_42. The business intent now has a durable identity.
"Make it 21:30 instead" stops generation and audio, but op_42 continues RUNNING. The conversation changes; the effect does not roll back.
The operation ends in one of three mutually exclusive truths.
If the effect exists, persist COMMITTED. If it does not exist, retry only when the operation is safe and idempotent.
cancel speech changes the conversation; by itself it does not change the truth of operation_id. If the response is lost after sending a mutation, UNKNOWN means "reconcile", not "retry". Only the system of record can resolve which effect actually exists.The model can emit the same tool call twice. The application can admit an action and lose the connection before receiving the result. An external provider can complete a payment after the user interrupts the agent’s speech. A result can arrive after control has already handed off to another agent.
In production, the authoritative boundary for an action must live outside model-generated text.
Separate four kinds of state¶
Calling everything “context” hides important failure modes. A realtime agent normally has at least these layers:
| State | Example | Who should be authoritative |
|---|---|---|
| Model context | messages, tool calls, tool results | runtime/provider, depending on architecture |
| Session state | active turn, active agent, speech_id, ephemeral preferences |
runtime + application |
| Durable application state | operation_id, idempotency key, workflow status |
application storage |
| System of record | order, booking, transfer, ticket | domain API/database that owns the effect |
An in-memory value such as userdata can coordinate a session. It does not turn that memory into a durable ledger.
After a process crash, you should be able to reconstruct what happened from durable state and the system of record. LLM history can help explain the conversation, but it should not be the authority on whether a bank transfer happened.

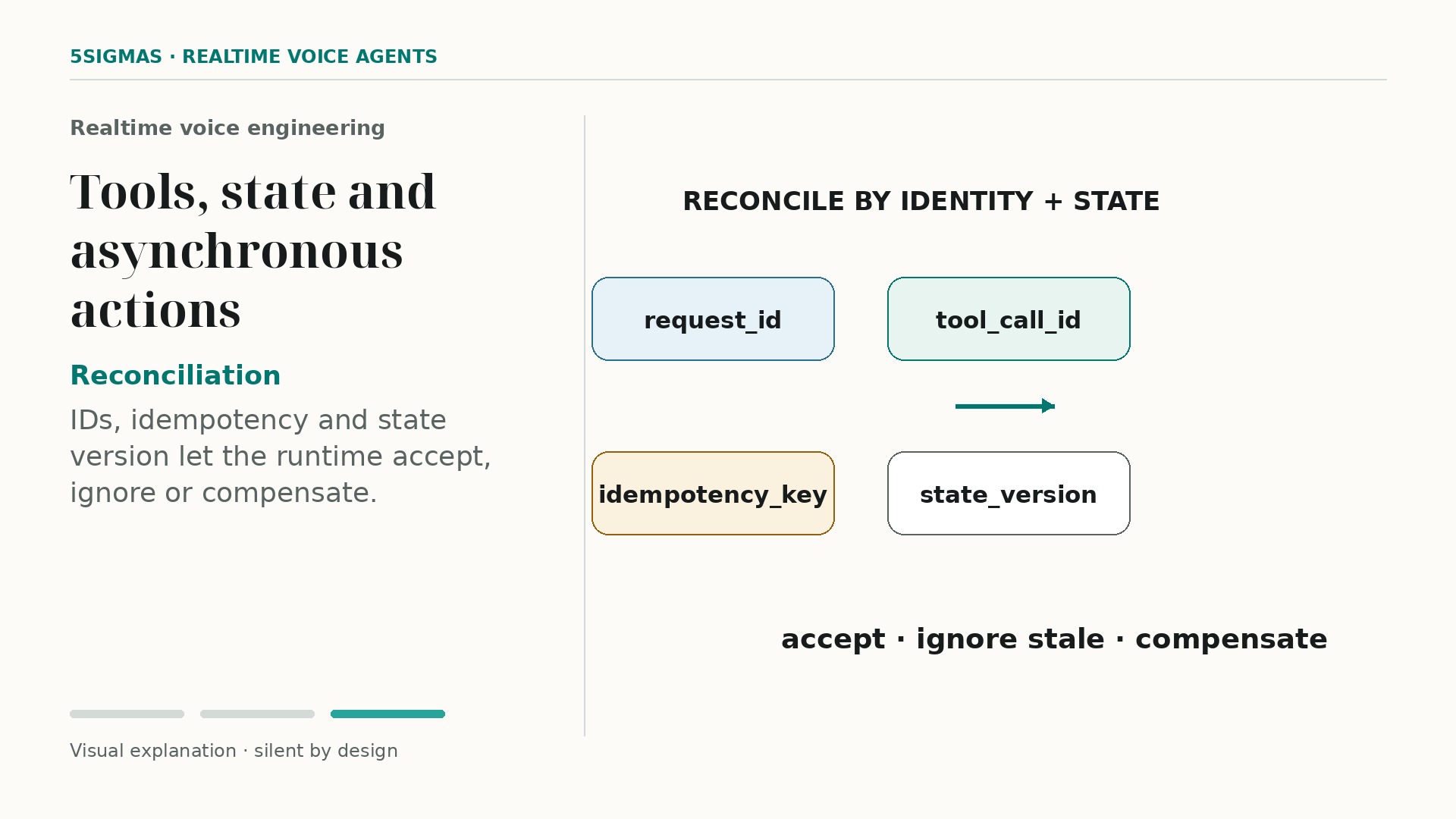

The minimum action contract¶
Before a mutating tool runs, define a stable identity and an explicit policy:
turn_id identifies the conversational turn
provider_call_id identifies the call emitted by the model
operation_id identifies the business intent
idempotency_key deduplicates equivalent retries
status admitted | running | committed | failed | unknown
A provider_call_id is not necessarily a valid business idempotency key. A second model attempt may produce a new call ID for the same human intent.
A practical design assigns or derives operation_id in the application layer after validating arguments, user identity, permissions, and preconditions. That ID then travels through logs, traces, callbacks, and the external system.
Schema validation is not authorization¶
A tool schema prevents some shape errors. It does not establish business semantics or permission.
Before admitting an action, validate the constraints relevant to the domain:
- user identity and authorization
- normalized arguments
- current resource preconditions
- whether explicit confirmation is required
- amount, frequency, or scope limits
- idempotency and duplicate detection
- deadline and retry policy
- which outcomes can be compensated and which are irreversible.
The tool declaration describes what the model may request. The application remains responsible for deciding what it may execute.
Cancelling speech, generation, and side effects are different operations¶
Voice systems often perform several cancellations at once, but they do not mean the same thing:
cancel model output
cancel TTS synthesis
clear queued/playout audio
cancel local coroutine
cancel provider request
cancel external business action
The first four can be fast and local. The last one may not exist at all.
If the agent starts create_booking() and the user barges in with “wait,” there are three materially different states:
- The action has not been admitted yet. Do not start it.
- It is running and the provider offers a real cancellation primitive. Request cancellation and wait for a confirmed state.
- The effect is already committed, or safe cancellation does not exist. Interrupt the conversation, then reconcile and communicate the real outcome.
Never say “cancelled” merely because the coroutine waiting for the response was cancelled.
OpenAI Realtime provides a useful example at the model/audio layer. response.cancel cancels an in-progress response and, on WebRTC/SIP, output_audio_buffer.clear cuts off output audio. Those events do not cancel a booking, payment, or other side effect executed by the application.8
Barge-in while a tool is still running¶
A user interruption should not erase information about an admitted action.
Consider this sequence:
T0 user: "book for two at 21:00"
T1 model requests book_table
T2 app admits operation_id=op_42
T3 restaurant API is still processing
T4 user: "actually make it 21:30"
T5 op_42 result arrives: 21:00 booking confirmed
The result of op_42 remains true even though the conversational turn that launched it is now stale.
The application must decide how to handle that late result. A safe pattern is to:
- persist it first
- determine whether it is still relevant to the current goal
- avoid blindly inserting it as if it belonged to the newest turn
- reconcile any real effect before launching a conflicting second action
- tell the user what actually happened, not what the dialogue expected to happen.
A turn_id helps detect that the conversation advanced. An operation_id prevents the effect from being lost.
Async does not mean fire-and-forget¶
A background action still needs an owner.
For every long-running operation, you should know:
who created it
which user/resource it affects
its deadline
what may be retried
which event completes it
what happens if the active agent changes
what happens if the user disconnects
what happens if the process dies
how its result can be observed again
If no component can answer those questions after a restart, the operation is not robustly asynchronous. It has merely been detached from the original await.
LiveKit Agents: session tooling is not durable business state¶
LiveKit Agents supports ordinary tools and asynchronous tools that allow the conversation to continue while long-running work completes.1
Inside a tool, RunContext exposes the current session, function_call, speech_handle, and userdata.2 That removes session plumbing, but it does not move the system-of-record boundary. userdata is workflow/session state, not a persistence guarantee for business effects.
Handoffs introduce an important ownership distinction. Async tools attached to an Agent belong to that agent, and LiveKit documents that pending updates from those tools are dropped when a handoff occurs. If an operation must survive the agent that launched it, an AsyncToolset can instead be attached to AgentSession, allowing its final result and updates to reach whichever agent is active when it finishes.3
That solves runtime ownership. It does not replace idempotency keys, durable workflow state, or reconciliation with the external API.
Runtime cancellation and duplicate handling are not business idempotency¶
LiveKit async tools finish by default even when the user moves on. To let the LLM stop a running call, the tool must explicitly opt in with ToolFlag.CANCELLABLE.3 That cancellation acts on work the runtime controls; it does not prove that an external API reversed an effect it already accepted or committed.
LiveKit also documents duplicate-call policies: allow, reject, replace, and confirm. Duplicate detection is based on the tool name, not its arguments; replace cancels the active call before starting the replacement and requires the active tool to be cancellable.3
That is execution control inside the agent, not business deduplication. Two calls with the same tool name may represent different operations, while two tool-call IDs may represent the same human intent. The durable boundary remains operation_id + idempotency key + system of record.
Tasks and handoffs change turn ownership¶
An AgentTask is a focused objective that takes control of the session until it returns a result. TaskGroup sequences such tasks while sharing context within the group.4
A handoff changes the active agent. LiveKit lets session userdata remain available, while a new agent receives fresh conversation history by default unless chat_ctx is passed explicitly; the complete session history remains available through session.history.5
Therefore, “same session ID” does not imply “same effective prompt,” and a late callback should not automatically be attributed to the agent that launched it.
Pipecat: function calls inside an explicit pipeline¶
Pipecat integrates function calling with its LLM flow, and its context aggregators store function calls and results in conversational context.6
FunctionCallParams exposes fields including function_name, tool_call_id, arguments, context, and result_callback. The application executes the handler and returns data through that callback.6
Pipecat documents two useful behaviors:
- with
cancel_on_interruption=True, the documented default, the function call participates in the flow that waits for its result - with
cancel_on_interruption=False, the call is treated as asynchronous, the conversation can continue, and the eventual result is injected into context as a developer message that triggers another LLM inference.6
Async functions can also emit intermediate results with is_final=False before sending the final result.6
The current API makes this decision per tool. With @tool_options(cancel_on_interruption=False, cancellable_by_llm=True, timeout_secs=...), an asynchronous function can let the conversation continue while it runs and also allow the model to request cancellation when the work is no longer relevant. Pipecat then advertises a tool-specific cancel_<name> function. A tool_call_id is only needed to select one call when multiple instances of the same tool are in flight. The older service-wide enable_async_tool_cancellation flag is deprecated and will be removed in 2.0.0.6
The documentation defines timeout_secs as the per-tool deadline that overrides function_call_timeout_secs, cancelling the handler with asyncio.CancelledError when it exceeds the limit. That deadline covers the handler itself, not work the handler detached into a separate task.6 Do not currently treat it as an absolute guarantee for an async tool that emits intermediate updates. As of September 10, 2026, LLMService on main cancels its timeout_task whenever result_callback delivers any result; upstream issue #5481 documents that an is_final=False callback can therefore disarm the deadline before the final result.7 If the deadline is a safety or reliability boundary, add an application-owned watchdog/cancellation path and verify the deployed Pipecat version until the upstream behavior is fixed.
These primitives control execution Pipecat owns. Cancelling the handler or its async call does not prove that a remote side effect already submitted was reversed. The contract with the external API or worker must establish the actual outcome.
That is a useful primitive for experiences such as “I’m still checking.” It does not make the underlying side effect durable, idempotent, or compensable.
app_resources shares references; it does not provide persistence¶
Pipecat can pass app_resources through PipelineTask so function handlers share database connections, API clients, or application objects. Its documentation states that the resources are passed by reference and that the framework does not copy or clear them.6
This is dependency injection, not durable storage.
Vanilla/thin Python: maximum explicitness, maximum ownership¶
Direct SDKs and protocols let you define exactly the boundaries your product needs. They also make the application responsible for those boundaries.
Beyond transport, media, buffering, turn-taking, and cancellation from the earlier chapters, a vanilla implementation must own here:
- tool registry and schemas
- validation, authorization, and confirmations
- provider-call → business-operation mapping
- durable state machine
- idempotency keys
- timeouts, retries, and retry budgets
- bounded concurrency and backpressure
- cancellation and compensation
- late-result correlation
- crash persistence and recovery
- handoff/session migration
- tracing, audit log, and replay
- race and partial-failure tests
- workers, queues, and scaling for long-running actions.
Fewer framework layers can mean more control. They do not mean less system to build.
The state machine must survive a restart¶
For important external effects, model states that can be reconstructed:
REQUESTED
↓ validate + authorize
ADMITTED
↓ persist operation_id + idempotency_key
RUNNING
├──→ COMMITTED
├──→ FAILED_RETRYABLE
├──→ FAILED_FINAL
└──→ UNKNOWN
UNKNOWN is a necessary state. It appears when the request may have reached the provider but the response was lost.
Do not automatically replay a non-idempotent operation from UNKNOWN. First query the system of record by operation_id, idempotency key, or domain identifier. If the provider offers no reconciliation mechanism, that risk is part of the product design.
A retry needs idempotency and a budget¶
“Retry three times” is not a complete strategy.
A safe retry policy answers:
- Is the operation idempotent?
- Does the provider honor the same idempotency key across attempts?
- Which failures are retryable?
- What is the total user/business deadline?
- Is there backoff and jitter?
- Can a second worker run the same job concurrently?
- How do we know whether the previous attempt committed?
Repeating reads can be cheap. For mutations, a timeout after sending the request can mean “the response failed,” not “the effect failed.”
Compensation is not cancellation¶
Some committed effects can be reversed only by another operation. That is compensation.
op_43 does not erase the history of op_42; it creates another business transition.
That distinction matters for auditability, payments, bookings, and other side-effecting systems. If the user interrupts after commit, compensation may be the correct next action. Pretending the first action never happened is not.
Tools need backpressure too¶
An agent can accept work faster than its dependencies can process it. If every tool call opens an unbounded coroutine or job, bursts turn the implicit queue into memory pressure, connection pressure, or rate-limit failures.
Define limits per constrained resource:
max concurrent operations
max queued operations
per-user/per-tenant limits
deadline before admission
policy: reject | queue | coalesce | degrade
Coalescing may be valid for repeated reads. Combining two mutations can change semantics. The domain must own that decision; it cannot be a generic framework rule.
Gate late results for relevance¶
A valid result does not always deserve immediate speech.
Before a late callback becomes audible output, ask at least:
Does it belong to the same user and logical session?
Was the result already communicated?
Is the conversational goal still current?
Does a newer turn contradict it?
May the active agent disclose it?
Does reconciliation need to happen first?
Separating the durable result from the conversational response prevents an old callback from taking over the current turn.
Observability: correlate conversation and effect¶
A useful trace does not stop at tool_called.
Record, while avoiding unnecessary secrets or PII:
session_id / conversation_id
turn_id
model response id
provider tool_call_id
operation_id / idempotency_key
admission timestamp
external request span
commit/reconcile timestamp
result delivery timestamp
active agent at delivery
spoken acknowledgement id
That lets production debugging answer concrete questions:
- Did the model duplicate the request, or did our retry layer duplicate it?
- Did the user hear confirmation for an action that never committed?
- Did the operation finish after barge-in?
- Did a handoff lose the result?
- Did a restart leave an action in
UNKNOWN?
Evals and replay: test races, not only happy paths¶
A tool-calling test that only asks “did the model select the right function?” is insufficient for realtime systems.
Add deterministic scenarios such as:
- barge-in before
ADMITTED. - barge-in after
RUNNING. - timeout after sending a mutation.
- duplicate result.
- reconnect while the action remains active.
- handoff before an async tool completes.
- crash between
COMMITTEDand user acknowledgement. - late result after intent changes.
- two concurrent tool calls against the same resource.
- retry with and without provider idempotency support.
The assertion is not just the final sentence. Check durable state, number of side effects, causal order, and what audio the user actually heard.
LiveKit, Pipecat, or vanilla: choose the boundary you need to control¶
There is no universal winner here.
| Need | LiveKit Agents | Pipecat | Vanilla/thin Python |
|---|---|---|---|
| Tool calling | tools on Agent/AgentSession; RunContext connects tool and session |
handlers + FunctionCallParams integrated with LLM/context aggregators |
app-designed provider adapters and contracts |
| Background/async | async tools; AsyncToolset can survive handoffs |
cancel_on_interruption=False continues and reinjects results |
application scheduler/queue/callback protocol |
| Ephemeral state | userdata, chat context, session history |
LLMContext, aggregators, app_resources |
application structures |
| Durable business state | application responsibility | application responsibility | application responsibility |
| Handoff/result ownership | explicit agent/task/session primitives | depends on pipeline, context, and app logic | completely explicit |
| Idempotency/reconciliation | domain/application | domain/application | domain/application |
| Low-level protocol control | lower if you accept runtime primitives | high at processor/frame level | maximum control and maximum implementation burden |
Choose LiveKit Agents when¶
AgentSession is your natural unit, integrated tools/tasks/handoffs fit the workflow, and its async-tool ownership semantics match your needs. Keep durable business state external, and use AsyncToolset specifically when the operation should outlive the agent that launched it.
Choose Pipecat when¶
You want an explicit pipeline and granular control over when function results return to context, including calls that continue through interruptions and report intermediate updates. Keep the source of truth for side effects outside conversational context.
Choose vanilla/thin when¶
You need a highly specific durable action state machine, direct provider/protocol integration, cancellation or replay semantics not supplied by a runtime, or experiments where every boundary must be observable. In return, your application owns scheduling, persistence, retries, cancellation, reconciliation, tracing, testing, and scaling.
Use a hybrid when¶
The realtime runtime already solves media, session, and turn-taking, while the business stack already has a durable workflow engine or job platform. The voice tool can admit an operation into that system, receive an operation_id, and observe progress without making the realtime process the owner of a multi-minute workflow.
That boundary is usually cleaner than forcing a long-running operation to live inside the same coroutine serving the voice turn.
Production rule¶
The chapter reduces to one ownership rule:
The model proposes; the application admits; the system of record confirms; the conversation communicates.
With those responsibilities separated, interruption, retry, handoff, and restart can change the conversation without rewriting business reality.
When they are mixed together, the agent can sound confident while its internal state has already diverged from the real world.
What to measure before optimizing¶
For each tool class, capture distributions and rates rather than only an average:
- admission latency
- time to commit or result
- timeout and retry rates
- duplicate-suppression rate
- operations left in
UNKNOWN - late results after turn changes
- cancellation requested vs cancellation confirmed
- compensations
- handoffs with pending operations
- reconciliation failures
- time from commit to audible acknowledgement.
Do not compare different runtimes under different workloads, providers, or policies and label the delta “framework overhead.” To attribute overhead, hold hardware, network, provider/model, external action, load, turn-taking policy, and persistence strategy constant.
Conclusion¶
Tools turn a voice agent into a system that changes external state. At that point, correctness is no longer just choosing the right function.
You need to separate conversational context, session state, durable state, and the system of record; distinguish audio cancellation from side-effect cancellation; design idempotency and reconciliation; bound work; and decide what happens when results arrive after an interruption, handoff, or restart.
LiveKit Agents and Pipecat provide useful primitives at different boundaries. Vanilla/thin Python leaves those boundaries to the application. None of them remove the business problem: an external effect needs a durable owner independent of whatever sentence the agent is speaking at that moment.
-
LiveKit Documentation, Tool definition and use. https://docs.livekit.io/agents/logic/tools/ ↩
-
LiveKit Documentation, Function tools — RunContext. https://docs.livekit.io/agents/logic/tools/definition/ ↩
-
LiveKit Documentation, Async tools. https://docs.livekit.io/agents/logic/tools/async/ ↩↩↩
-
LiveKit Documentation, Tasks and task groups. https://docs.livekit.io/agents/logic/tasks/ ↩
-
LiveKit Documentation, Agents and handoffs. https://docs.livekit.io/agents/logic/agents-handoffs/ ↩
-
Pipecat Documentation, Function Calling. https://docs.pipecat.ai/pipecat/learn/function-calling ↩↩↩↩↩↩↩
-
Pipecat GitHub, Per-tool timeout_secs is disarmed by an intermediate (is_final=False) result callback — hung async tools are never bounded, issue #5481. https://github.com/pipecat-ai/pipecat/issues/5481 ↩
-
OpenAI API Reference, Realtime client events — response.cancel / output_audio_buffer.clear. https://platform.openai.com/docs/api-reference/realtime-client-events/conversation/item/create ↩
