03 of 06LLM Inference Engineering & Economics

quality trade-offs¶

Watch video, summary and related content

Estimated reading12 min

The previous two chapters separated prefill from decode and then made the KV-cache budget explicit. Two more levers are routinely compressed into phrases that hide most of the engineering decision:

“quantize the model”
“put it on more GPUs”

Neither describes a complete configuration.

A checkpoint may use 4-bit weights while keeping 16-bit activations. Its KV cache may remain in BF16 or use FP8 with an entirely separate scale policy. A runtime may dequantize weights before a compute path, or execute a kernel that consumes the quantized representation directly. Two deployments that both say TP=4 may communicate over NVLink/NVSwitch in one case and cross nodes over a much slower network in the other.

The useful question is not “how many bits?” or “how many GPUs?”. It is:

Which tensors are smaller, which operations can the hardware execute efficiently with that representation, which state is replicated or sharded, and what communication is now on the critical path?

Representation · placement · communication

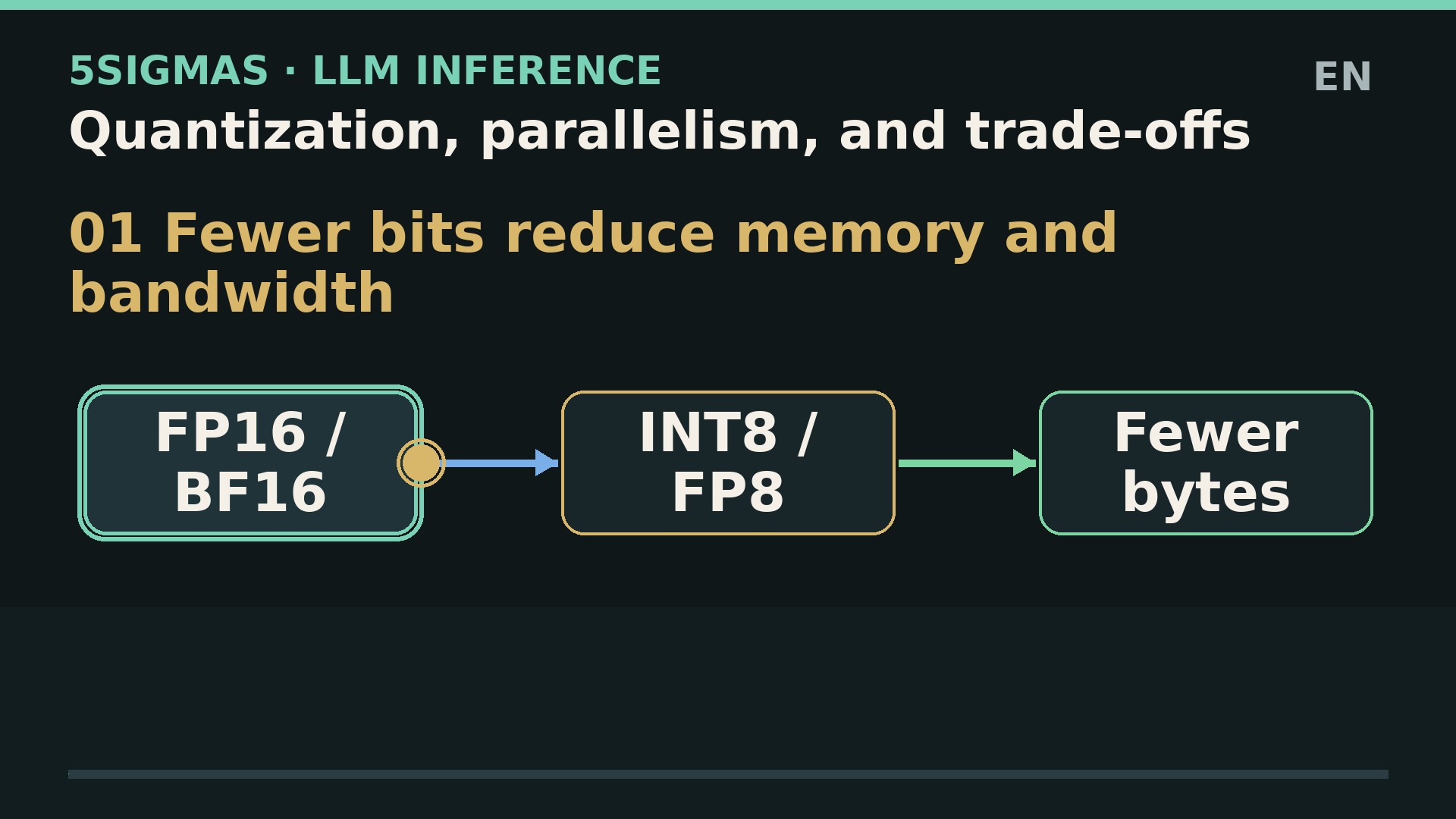

Fewer bits change which bytes move; more GPUs change who has to communicate with whom

Quantization only shrinks tensors that are actually quantized, and it only speeds execution when the hardware/runtime has a favorable kernel path. Parallelism only helps when the saved local work outweighs communication, synchronization, and replicated state.

placement / local executioncommunication / synchronizationmechanism boundary

Reading: W4A16 states the precision of weights and activations; it does not say which kernel executes, how much scale metadata costs, or what quality the model preserves. TP=4 states how part of the model is sharded; it does not say how long the collective takes or whether the interconnect can sustain it. Bit width and GPU count are system inputs, not performance metrics.

Quantization does not mean that the whole model has one precision¶

Common notation already carries important scope information.

Text Only

W4A16  → 4-bit weights, 16-bit activations
W8A8   → 8-bit weights, 8-bit activations
FP8 KV → FP8 KV cache; it does not imply FP8 weights

TensorRT-LLM currently exposes separate recipes for FP4, FP8, W4A16/W4A8 with AWQ or GPTQ, and independent KV-cache quantization.¹ vLLM likewise treats weight/activation quantization and KV-cache quantization as separate surfaces.³⁵

A phrase such as “INT4 model” is therefore not enough to reproduce a result. At minimum, record:

which modules and tensors are quantized
weight dtype
activation dtype
KV-cache dtype
scale granularity
calibration method and calibration data, when used
modules retained at higher precision
packing and layout format
kernels actually selected by the runtime
hardware and runtime version

The basic operation introduces representation error¶

For a simple symmetric quantizer, we can write:

\[ q = \operatorname{clip}\left(\operatorname{round}\left(\frac{x}{s}\right),q_{min},q_{max}\right) \]

\[ \hat{x}=s\,q \]

with error:

\[ \varepsilon=x-\hat{x} \]

q belongs to a discrete set and s is a scale. Asymmetric schemes also introduce a zero point. Real implementations must additionally make choices about clipping, rounding, grouping, outliers, packing, and accumulator types.

The granularity of s changes the trade-off. A global scale has little metadata but has to cover a more heterogeneous distribution. Per-channel, per-group, per-token, or per-block scales can adapt locally, but require more metadata and potentially more work.

TensorRT-LLM explicitly distinguishes per-channel, per-token, and per-group modes, among others.² vLLM's current KV-cache documentation separates per-tensor and per-attention-head scaling and recommends dataset-based calibration for its higher-accuracy pathway.⁵

Weight-only and weight-plus-activation quantization target different bottlenecks¶

Weight-only¶

With W4A16, for example, weights are stored at lower precision while activations remain at higher precision.

This clearly reduces the weight payload. It can be especially useful when moving weights dominates execution, but latency depends on whether an efficient kernel exists for that representation and on any dequantization/packing cost.

GPTQ is a weight-only post-training quantization method based on approximate second-order information.⁶ AWQ is also weight-only, but uses activation statistics to identify and protect salient channels through scaling.⁷

The speed numbers reported in those papers belong to their models, kernels, GPUs, and baselines. They are not portable multipliers for arbitrary 2026 deployments.

Weight + activation¶

In W8A8, both weights and activations use lower precision on eligible operations. That can reduce traffic and unlock lower-precision instructions, but now a second distribution has to be represented accurately. Activations may contain outliers that are substantially harder to quantize.

SmoothQuant targets that problem by moving some of the activation-quantization difficulty into the weights through an offline, mathematically equivalent transformation, enabling W8A8 in the paper's experiments.⁸

Current vLLM documentation exposes another important boundary: for FP8 W8A8, the runtime selects among several kernels according to GPU and checkpoint, while its online dynamic-quantization path computes activation scales during forward execution. The documentation explicitly notes that latency improvements can be limited in that online mode.⁴

A smaller dtype is not a hardware instruction. The available kernel decides whether the representation is exploited efficiently or whether conversions erase part or all of the expected gain.

KV cache is a third precision decision¶

Chapter 4.2 showed that KV-cache memory grows with live tokens. Reducing bytes per element can increase resident tokens or concurrent sequences without touching the weights.

vLLM currently supports FP8 KV cache with per-tensor scales and, on specific backends, per-attention-head scales. It can also leave sensitive layers out of KV quantization.⁵

That changes the quality question. Weight error affects many operations throughout the model. K/V error affects state that attention reuses across the sequence. For long-context serving, a short-task benchmark does not establish that behaviour will remain unchanged at 64k or 128k tokens.

A KV-cache quantization benchmark should therefore report at least:

Text Only

context-length distribution
attention architecture
KV dtype + scale granularity
calibration dataset/method
layers excluded from quantization
quality/eval suite
TTFT / TPOT / throughput
max live tokens / concurrency

Ideal payload savings are easy to compute; real footprint is not¶

For N_w weights represented with b_w bits, the ideal payload is:

\[ M_{payload}=N_w\frac{b_w}{8} \]

A deployed representation is closer to:

\[ M_{weights,actual} = M_{payload} +M_{scales} +M_{zero/meta} +M_{padding/layout} +M_{unquantized} \]

The process still needs KV cache, workspaces, temporary activations, allocator state, graph captures, and operating headroom.

Illustrative example, not a benchmark¶

Assume exactly 70×10^9 quantizable parameters and temporarily ignore metadata and excluded modules.

At 16 bits:

\[ 70\times10^9\cdot2\text{ bytes}=140\text{ GB}=130.4\text{ GiB} \]

At 4 bits, the ideal payload is:

\[ 70\times10^9\cdot0.5\text{ bytes}=35\text{ GB}=32.6\text{ GiB} \]

That is a reduction in payload, not a claim that a real process will consume exactly 35 GB or run four times faster.

If those quantized weights could be perfectly sharded across four tensor-parallel ranks, the mean ideal payload would be:

\[ 35\text{ GB}/4=8.75\text{ GB per rank} \]

Actual per-rank footprint also includes scales, replicated tensors, buffers, KV cache, and any component not sharded that way. Quantization and parallelism can reduce different terms of the memory budget. They do not turn total VRAM into payload / bits / GPUs.

Quality does not follow from the scheme name¶

Two W4A16 checkpoints can preserve quality very differently because they may differ in:

quantization method
groups and scales
calibration data
excluded layers
outlier handling
model architecture
evaluation distribution

AWQ, GPTQ, and SmoothQuant provide evidence about specific techniques under specific experiments, not universal guarantees for every checkpoint.⁷⁶⁸

A useful quantization release gate compares the original and quantized model under the same harness:

Text Only

same prompts / dataset
same decoding parameters
same max context
same tool/reasoning settings when applicable
same metric implementation
paired outputs when possible

The suite should also reflect the production workload. Perplexity can reveal language-model degradation, but it does not replace code, mathematics, structured extraction, tool-use, or long-context evals when those behaviours matter in production.

Parallelization is a placement decision¶

When one GPU cannot fit the model or cannot meet the SLO, work can be distributed. But “multi-GPU” does not tell us which dimension is distributed.

TensorRT-LLM currently documents tensor, pipeline, data, expert, and context parallelism as distinct inference strategies.⁹

Each changes a different relationship:

Strategy	What is distributed	What remains coupled for one request	New cost to watch
Data parallel (DP)	requests across replicas	one request can run inside one replica	replicated weights, load balance, per-replica capacity
Tensor parallel (TP)	tensors inside a layer	the same request spans all TP ranks	frequent collectives + synchronization
Pipeline parallel (PP)	groups of layers	the request traverses stages	activation transfer + bubbles/stage balance
Expert parallel (EP)	MoE experts	tokens route to remote experts	dispatch/all-to-all + imbalance
Context parallel (CP)	sequence/context dimension	attention must combine state across shards	K/V/attention communication + synchronization

These definitions describe the partitioning dimension. The exact communication pattern still depends on runtime, model, and algorithm.

Data parallel: scale requests, not one request by magic¶

In data parallel, multiple replicas can accept different work.

Text Only

request A → replica 0
request B → replica 1
request C → replica 2

If each replica holds the complete model, the obvious cost is replicated weight memory. In exchange, aggregate throughput can grow when demand is sufficient and the load balancer distributes requests effectively.

DP does not by itself reduce the compute time of an individual request. That request still runs within a replica unless the runtime combines DP with another parallel dimension.

For serving, DP can also create a different failure boundary than one large TP group. If a replica fails, another replica might accept future work. Resuming a request elsewhere, reconstructing state, and preventing duplicate external effects are still serving-system responsibilities, not automatic properties of “DP”.

Tensor parallel: less tensor per rank, more intra-layer communication¶

Tensor parallel shards layer matrices/tensors across GPUs. Every rank computes a part, and the group must combine results.

NCCL defines operations such as AllReduce, AllGather, and ReduceScatter across participating ranks. Ranks have to enter compatible collective calls for the operation to complete correctly.¹¹

A useful conceptual latency decomposition is:

\[ T_{layer,TP} \approx T_{compute\ local} +T_{collective} +T_{sync} \]

As TP grows, T_compute local can fall because each rank performs less work. The collective does not disappear. Once the local shard becomes small enough, communication and synchronization can dominate.

That is why TP=8 across eight GPUs connected by NVLink/NVSwitch and TP=8 spanning nodes over another network are not the same experiment.

vLLM's distributed-serving documentation makes this operationally concrete: multi-node tensor parallelism requires efficient GPU-to-GPU communication and recommends verifying whether NCCL is actually using InfiniBand/GDRDMA rather than sockets.¹³

Pipeline parallel: fewer layers per rank, but the request crosses stages¶

Pipeline parallel places different groups of layers on different ranks:

Text Only

rank 0: layers 0..n
rank 1: layers n+1..m
rank 2: layers m+1..z

An activation leaves one stage and enters the next. This can solve a capacity problem when one GPU cannot hold every layer.

It also introduces two new problems:

balance: the slowest stage limits the pipeline
bubbles: without enough overlap, some stages wait idle

During low-concurrency autoregressive decode, where each token adds a sequential dependency, those bubbles can matter. PP=4 must not be interpreted as dividing request latency by four.

Expert parallel: only meaningful when the model has experts¶

In a Mixture-of-Experts model, a router selects a subset of experts for each token. Expert parallel distributes complete experts across ranks rather than slicing every expert across all ranks.

TensorRT-LLM currently distinguishes TP, EP, and hybrid patterns for MoE layers.¹⁰

The new relationship is:

Text Only

token → router → rank owning selected expert → result → combination

That often requires redistributing hidden states. NCCL provides AllToAll, where each rank sends different chunks to destination ranks.¹¹

Two risks appear immediately:

communication volume, because token states have to travel to their experts
load imbalance, because routing does not guarantee equal token counts for every expert

EP performance therefore depends on routing distribution and on the runtime's balancing or expert-replication strategy.

Context parallel: sharding sequence does not automatically shard weights¶

Context parallel splits the sequence/context dimension across ranks. Attention is the hard part: local queries need K/V information that may reside on other shards.

Megatron Core documentation makes that boundary explicit. CP partitions sequence state, while weights remain duplicated within a CP group, and attention requires additional communication to exchange/gather K/V information.¹⁴

TensorRT-LLM also exposes CP as an inference strategy for long-context workloads.⁹

CP can therefore relieve sequence-related memory/compute without being equivalent to TP. CP shards context. TP shards model tensors.

Strategies compose, but memory has no universal division formula¶

A deployment may combine TP + PP + DP. An MoE model can add EP or use a TP/EP hybrid in expert layers. CP can coexist with other dimensions.

Do not write:

Text Only

memory_per_GPU = total_memory / (TP × PP × DP × EP × CP)

as a general rule. It is false.

DP replicates weights rather than sharding them.
CP may replicate weights while sharding sequence state.
EP affects expert layers, not every layer.
TP may leave small tensors or specific modules replicated.
PP distributes layers that need not contain equal bytes.
KV cache can follow another sharding policy.

The correct method is a per-tensor/state inventory: for each component, determine whether it is replicated, sharded, or absent on a given rank.

The interconnect is part of the performance model¶

A multi-GPU comparison that only says “8×H100” is incomplete.

Record at least:

Text Only

GPU model + memory
GPUs per node
intra-node fabric (NVLink/NVSwitch/PCIe...)
inter-node NIC + bandwidth
NCCL/version + topology
TP / PP / DP / EP / CP sizes
collective algorithms/settings when material
model + quantization
sequence/batch distribution

NCCL is topology-aware and implements collectives within and across nodes, but communication and synchronization still have a cost.¹²

When per-rank compute falls faster than communication time, scaling efficiency collapses. That crossover depends on workload and topology. There is no system-independent “right number of GPUs”.

Quantization and parallelism interact¶

The two levers are not independent.

Quantization can change how much parallelism you need¶

If lower-precision weights make a model fit without four-way TP, you might instead run one replica per GPU and spend the hardware on DP throughput. That can remove TP collectives from the request's critical path.

Parallelism can change the value of quantization¶

If TP already shards weights, quantization can free memory for more KV cache, larger batches, or fewer ranks. But if the deployment is communication-bound, shrinking weight storage does not guarantee that the bottleneck disappears.

The quantized format may also change communication¶

Depending on runtime, some communications operate on higher-precision tensors, others on reduced representations, and others require conversions. Measure the actual path. W4A16 alone does not specify it.

Optimization should therefore start from the observed constraint:

Text Only

weights do not fit?      → quantization / TP / PP can help in different ways
KV limits concurrency?   → KV quantization / CP / cache policy
memory-bound decode?     → weight-only + suitable kernel may help
compute-bound prefill?   → activation dtype + compute kernel may matter more
TP communication-bound?  → fewer ranks / better fabric / different partition
MoE imbalance?           → EP placement / routing / expert replication

These are hypotheses to validate, not universal recipes.

Failure domains: a distributed request depends on more components¶

If one request needs four TP ranks at every layer, losing one of those ranks breaks that execution group. The same is true when a required PP stage disappears.

That does not mean “multi-GPU is universally less reliable”. It means the failure domain of a request changes with placement.

Define:

which ranks are required to complete a request
which state is reconstructible
whether another compatible replica exists
how slow or lost ranks are detected
whether recovery restarts from scratch or from durable state
how duplicate external effects are prevented

Inference topology belongs in the reliability design, not only in the benchmark report.

What to measure when choosing a configuration¶

A useful decision matrix starts with four layers rather than with bits or GPU count.

1. Footprint¶

Text Only

weights per rank
scales / quant metadata
KV bytes per live token
runtime/workspace bytes
headroom
replicated vs sharded bytes

2. Critical path¶

Text Only

TTFT
TPOT / ITL
prefill time
decode time
collective time by type
GPU↔GPU / node↔node bytes
kernel time + dequant/quant time

3. Capacity¶

Text Only

requests/s
tokens/s
SLO goodput
max live tokens
preemptions / queue time
GPU utilization
communication utilization

4. Quality and robustness¶

Text Only

task metrics vs original checkpoint
long-context eval if KV is quantized
structured-output/tool success when relevant
numerical drift / NaN / overflow incidents
failure/retry behavior by parallel group

Reproducible benchmark contract¶

To compare two configurations, fix or report:

exact checkpoint and revision
tokenizer
runtime and commit/version
full quantization recipe
calibration dataset and seed, when applicable
GPU and driver/CUDA
interconnect/topology
TP/PP/DP/EP/CP
scheduler/batching
KV dtype
(L_in,L_out) and request distribution
concurrency/request rate
warmup
number of repetitions
medians and percentiles, not only a mean
quality under the same harness

If hardware, runtime, quantizer, GPU count, and workload all change at once, the result compares two complete stacks. It does not isolate the causal effect of INT4 or tensor parallelism.

Deterministic evals before performance benchmarking¶

Some invariants can be checked without making any performance claim.

Quantization¶

Text Only

reported weight dtype == loaded weight representation
scale shape matches declared granularity
excluded modules remain in intended dtype
KV dtype matches runtime configuration
quantized checkpoint produces finite outputs

Placement¶

Text Only

every required layer/tensor has exactly the intended owner(s)
TP shards reconstruct expected logical tensor shape
PP stage boundaries preserve activation contract
EP expert ownership matches router destination map
CP shards cover the intended sequence domain

Collectives¶

Text Only

all participating ranks enter compatible collective calls
message shape/dtype match the algorithm contract
one missing rank cannot silently produce a successful request

NCCL warns that incompatible collective participation across ranks can lead to hangs, crashes, or data corruption. That coordination requirement belongs to the distributed system, not to the model.¹¹

Production implication: optimize the constraint, not the technique name¶

Quantization and parallelism redistribute costs:

\[ \text{representation} \rightarrow \text{bytes + error + kernels} \]

\[ \text{placement} \rightarrow \text{per-rank memory + communication + synchronization} \]

Production needs a configuration that satisfies all of these at once:

\[ \text{fit} \land \text{quality} \land \text{latency SLO} \land \text{goodput} \land \text{reliability} \]

Lower precision can be the right choice even without a latency win if it makes the model fit or frees KV capacity. More GPUs can be the right choice even without linear scaling if they reduce per-rank memory or make a larger model feasible. Neither decision is justified by “INT4” or “8 GPUs” alone.

The next chapter examines two optimizations that change reused or avoided work: prefix caching and speculative decoding. The question will no longer be only where bytes live or how many ranks execute the model, but how much work can be skipped and how much speculative work is worth verifying.

References¶

NVIDIA TensorRT-LLM, Quantization. FP4/FP8, W4A16/W4A8 AWQ/GPTQ, and KV-cache quantization recipes. https://nvidia.github.io/TensorRT-LLM/features/quantization.html ↩
NVIDIA TensorRT-LLM, Quantization mode. Weight/activation flags, per-channel, per-token, per-group, and KV-cache quantization. https://nvidia.github.io/TensorRT-LLM/_modules/tensorrt_llm/quantization/mode.html ↩
vLLM, Quantization. Supported methods and hardware/format matrix. https://docs.vllm.ai/en/latest/features/quantization/ ↩
vLLM, FP8 W8A8. Hardware support, kernel selection, and dynamic quantization. https://docs.vllm.ai/en/latest/features/quantization/llm_compressor/fp8/ ↩
vLLM, Quantized KV Cache. FP8 KV, scale granularity, calibration, and layer exclusion. https://docs.vllm.ai/en/latest/features/quantization/quantized_kvcache/ ↩↩↩
Frantar et al., GPTQ: Accurate Post-Training Quantization for Generative Pre-trained Transformers, 2022. https://arxiv.org/abs/2210.17323 ↩↩
Lin et al., AWQ: Activation-aware Weight Quantization for LLM Compression and Acceleration, MLSys 2024. https://arxiv.org/abs/2306.00978 ↩↩
Xiao et al., SmoothQuant: Accurate and Efficient Post-Training Quantization for Large Language Models, ICML 2023. https://arxiv.org/abs/2211.10438 ↩↩
NVIDIA TensorRT-LLM, Parallelism in TensorRT-LLM. TP, PP, DP, EP, CP, and Wide-EP for distributed inference. https://nvidia.github.io/TensorRT-LLM/features/parallel-strategy.html ↩↩
NVIDIA TensorRT-LLM, Expert Parallelism. TP, EP, and hybrid patterns for MoE layers. https://nvidia.github.io/TensorRT-LLM/legacy/advanced/expert-parallelism.html ↩
NVIDIA NCCL, Collective Operations. AllReduce, AllGather, ReduceScatter, and AllToAll semantics and compatible rank participation. https://docs.nvidia.com/deeplearning/nccl/user-guide/docs/usage/collectives.html ↩↩↩
NVIDIA NCCL, Overview. Topology-aware GPU communication primitives and synchronization. https://docs.nvidia.com/deeplearning/nccl/user-guide/docs/overview.html ↩
vLLM, Distributed Inference and Serving. TP/PP and multi-node NCCL communication considerations. https://docs.vllm.ai/en/latest/serving/distributed_serving/ ↩
NVIDIA Megatron Core, Context Parallel Package. Sequence partitioning, weight replication inside the CP domain, and attention communication. https://docs.nvidia.com/megatron-core/developer-guide/latest/user-guide/features/context_parallel.html ↩

Keep learning

Next chapterSpeculative decoding, prefix caching, and other latency optimizationsLLM Inference Engineering & Economics
